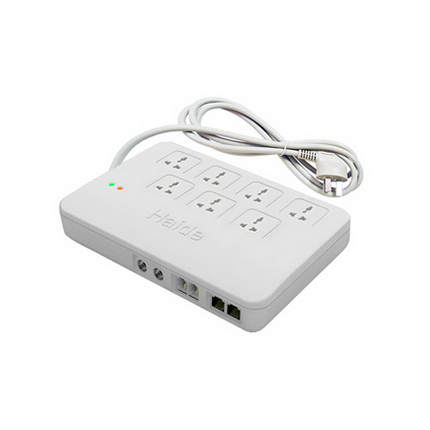

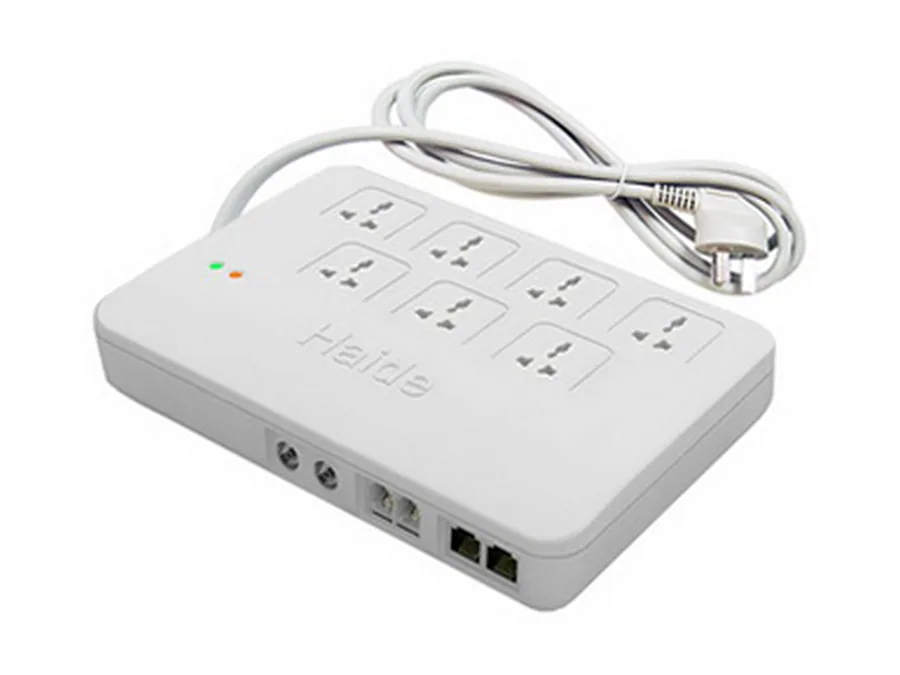

Multi-function power supply lightning protection socket HD-DCZ/TTN

Online Inquiry
Click Refresh Verification Code

Details

Power supply lightning protection socket

This single phase power supply lightning protection socket is designed according to IEC standard. Lightning arrester of this grade adopts the national standard universal socket, multi-shape power supply socket and built-in automatic safety device, and has invalidation indication.


Model

HD-DCZ/TTN

Power supply

Network

Telephone

TV

Nominal working voltage Un

220V

5V

180V


Maximum continuous working voltage Uc

275V

6.8V

200V


Nominal discharge current In 8/20μs

5KA

2.5KA

2.5KA

2.5KA

Maximum discharging current Imax8/20μs

10KA

5KA

5KA

5KA

Voltage protection level Up

700V

X-X70V

X-X400V

400V

X-G400V

X-G400V

Maximum intensity of backup fuse

10A




Insertion resistance


            1Ω

4Ω


Insertion loss


0.2dB

0.2dB

0.2dB

Number of guard wire


1236wire

23wire


Message transmission rate Vs


100Mbps



Bandwidth



2MHz

860MHz

Response time Ta

25ns

1ns

1ns

100ns

Operating temperature range Tup

-40to +70

Working status indication

Green light means work normallyred light means fault indication.

Protection grade

IP20

External dimension

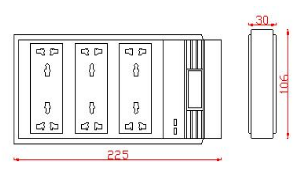

160×230×42mm

Sheathing material

Flame retardant thermoplastic material

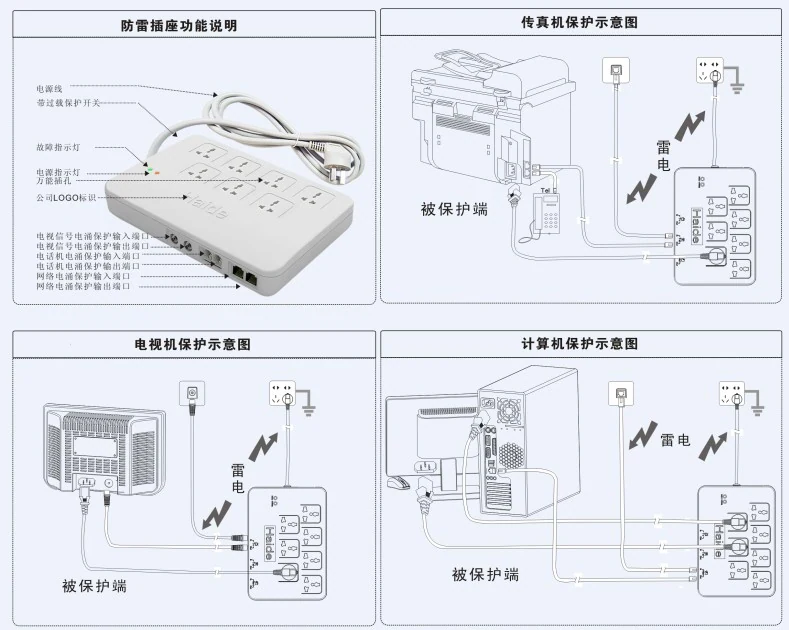

The lightning arrester is first inserted into the power outlet, and the electrical device is used to take power from the lightning arrester jack. "OUT" is the equipment end, "IN" is the incoming end, please make sure that the grounding of the wall socket is well grounded (grounding resistance ≤ 4Ω is recommended).
