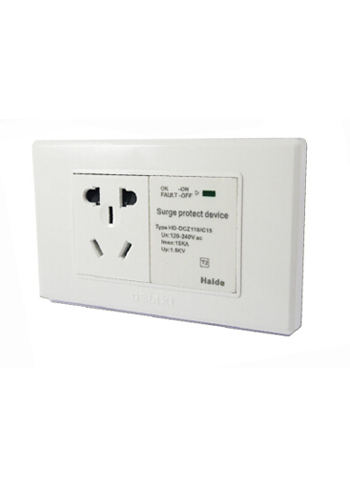

Wall-mountable socket(type 118) HD-DCZ118/C15

Online Inquiry
Click Refresh Verification Code

Details

This series of product is applicable to the single-phase power line lightning and surge protection for the fineuniversal sockets suitable for a variety of shape design of the power plugis especially suitable for household electrical equipment simple lightning protectionautomatic protection devicefault automatically off the gridthereby protecting the electronic equipment is working properlyit can also match network,telephone or television function.


MODEL

HD-DCZ118/C15

Nominal working voltage Un

120-240VAC

Maximum continuous working voltage Uc

275VAC

Nominal discharge current In 8/20μs

5KA

Maximum discharging current Imax8/20μs

15KA

Voltage protection level Up

1.0KV

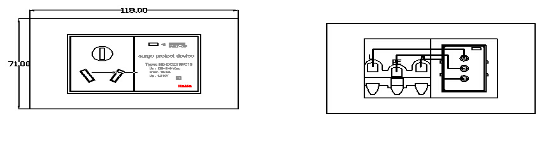

External dimension

118×71×33mm

Response time Ta

25ns

Protection grade

IP20

Sheathing material

Flame retardant thermoplastic material

Mode of connection

parallel

Interface type

National standard


Installation method:

The lightning arrester is inserted into the power socket first, and then the power device is used to take power from the socket of the lightning arrester. Make sure that the ground wire of the wall socket has good grounding (grounding resistance ≤ 4Ω is recommended).
