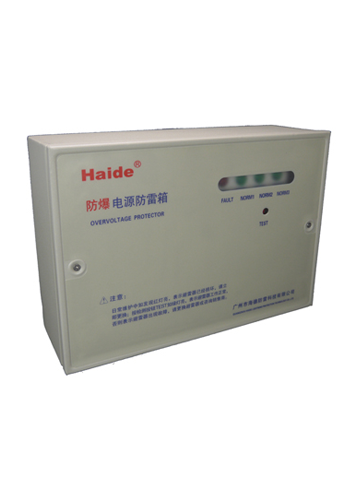

Explosion-proof lightning protection box HD-D380/220C-XSF

Crate-type explosion-proof power supply lightning protection box Electric surge protector of low-voltage distribution system, which is in the form of a box, is explosion proof and designed according to IEC standard. It has invalidation detection indication, overflowing and overheating protection with powerful discharge capacity of lightning current. It's applicable to the protection of buildings' general supply system against lightning. It is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later. Model HD-D380(220)B-XSF60 HD-D380(220)C-XSF40 HD-D380(220)C-XSF20 HD-D380/220C-XSF Nominal working voltage Un 380V/220V 380V/220V 380V/220V 380V/220V Maximum continuous working voltage Uc 385V/275V 385V/275V 385V/275V 385V/275V Nominal discharge currentIn（8/20ms） 30KA 20KA 10KA 20KA Maximum discharging currentImax（8/20ms） 60KA 40KA 20KA 40KA Voltagprotection level Up 2KV 1.6KV 1.2V 2.1KV Prepositive overflowing protection 63A 32A 16A 32A Overall dimension 260×180×85mm Response time Ta ≤25ns Operating temperature range Tup -40℃ to +70℃ Working order indication Green light means normal working, red light is fault indication. Section of minimum installed conductor 6m2 Multi-folded wire Explosion proof function Available Protection grade IP20 Sheathing material Metal spraying Mode of connection Parallel connection Protection mode 4+0/3+1/1+1/2+0 Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings. Plug the power phase line (L) and null line (N）into corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection well (recommended earth resistance ≤4Ω). Suggested specification of the lead wire: no less than 6mm2, short and straight.
