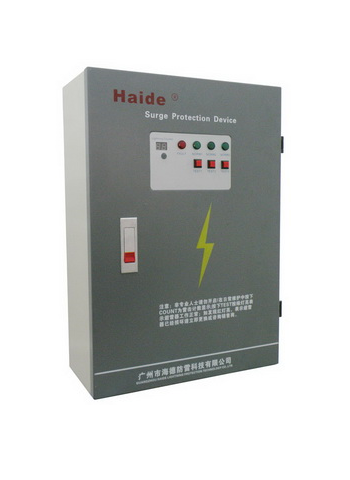

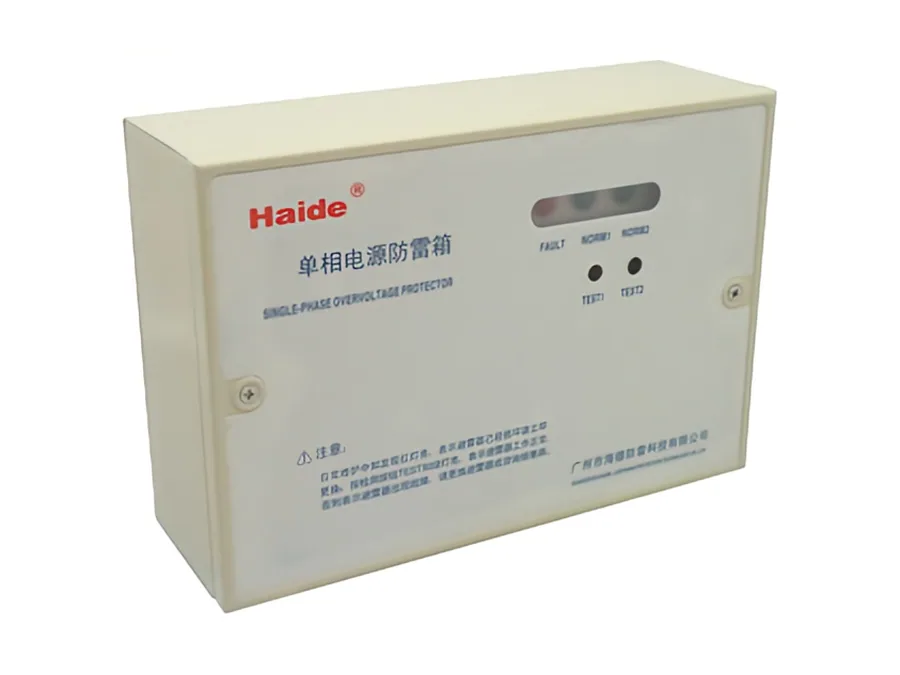

Crate-type power lightning arrester (oversize box)

Electric surge protector of low-voltage distribution system, which is in the form of a box, is designed according to IEC standard.It has invalidation detection indication, lightning stroke numbering display,installed overflowing and overheating protection with great lightning current discharge capability. It's applicable to the protection of buildings' general supply system against lightning, as well as Grade 1 and 2 lightning protection of the general supply in building, machine room, plant and enterprise to make sure the safe operation of electronic equipment and other electrical equipment. This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later.


Model

HD-D380B-DX200

HD-D380B-DX100

HD-D380B-DX80

HD-D380B-DX60

Nominal working voltage Un

380V

380V

380V

380V

Maximum continuous working voltage Uc

385V

385V

385V

385V

Nominal discharge current In 8/20μs

100KA

50KA

40KA

30KA

Maximum discharging current Imax8/20μs

200KA

100KA

80KA

60KA

Voltage protection level Up

4KV

2.5KV

2.3KV

2KV

Prepositive overflowing protection

125A

125A

125A

63A

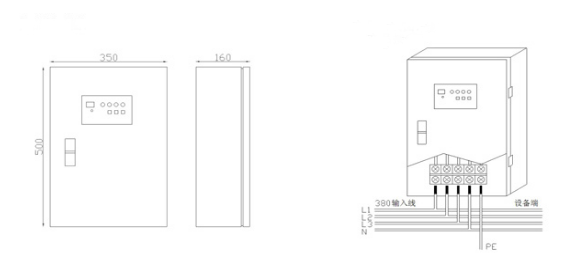

External dimension

360*500*160mm

Response time Ta

25ns

Operating temperature range Tup

-40℃至+70

Working status indication

Green light means work normally,red light means fault indicaiton.

Section of minimum installed conductor

6mm2 multi-folded wire

Sheathing material

Metal spraying

Mode of connection

parallel connection

Protection mode

4+0/3+1/1+1/2+0



Installation method:


Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings.

Plug the power phase line (L) and null line (Ninto corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection well (recommended earth resistance 4Ω).

Suggested specification of the lead wire: no less than 6mm2, short and straight.
