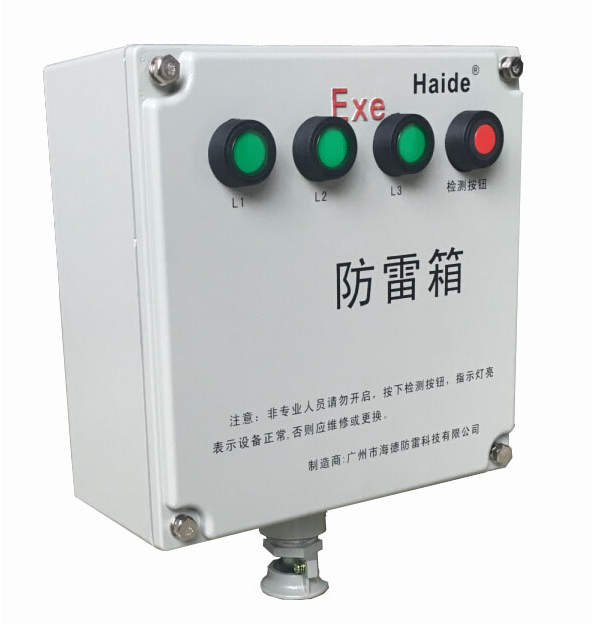

Exe explosion-proof lightning protection box

Introduction： This product adopts the box structure and the sealed internal device has strong waterproof, dustproof and anti-corrosion properties and is completely free of arc. Leakage.It has EX explosion-proof function certification, more effectively play a role in protection.It’s suitable for the three-level lightning protection of the total power supply in the special operating environment of buildings, computer rooms, factories, enterprises, etc.,it also can effectively suppress the over-voltage on the power line,ensuring the safe operation of electronic equipment and other electrical equipment. Technical parameter： MODEL HD-D380/220M-EX HD-D380（220）B-EX60 HD-D380（220）C-EX40 Nominal working voltage Un 380V/220V 380V/220V 380V/220V Maximum continuous working voltage Uc 320V 385V/275V 385V/275V Nominal discharge current In （8/20μs） 100KA 30KA 20KA Voltage protection level Up 1.5KV 2KV 1.6KV External dimension 300*384*145mm 300*384*145mm 300*384*145mm Response time Ta ≤25ns ≤25ns ≤25ns Operating temperature range Tup -40℃ to +70℃ -40℃ to +70℃ -40℃ to +70℃ Explosion-proof function Yes Yes Yes Anti-corrosion, water-proof, dust-proof function Yes Yes Yes Protection grade IP67 IP67 IP67 Sheathing material Aluminum alloy Aluminum alloy Aluminum alloy Mode of connection parallel connection parallel connection parallel connection Mode of connection 4+0/3+1/1+1/2+0 4+0/3+1/1+1/2+0 4+0/3+1/1+1/2+0 Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings. Plug the power phase line (L) and null line (N）into corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection well (recommended earth resistance≤4Ω). Suggested specification of the lead wire: no less than 6mm2, short and straight.
