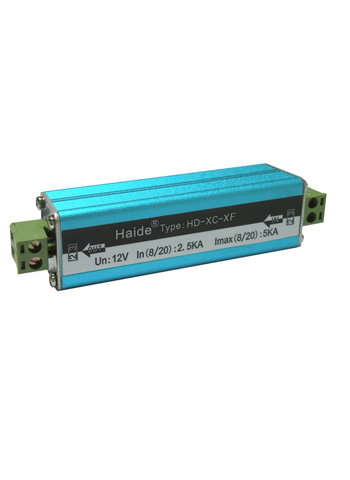

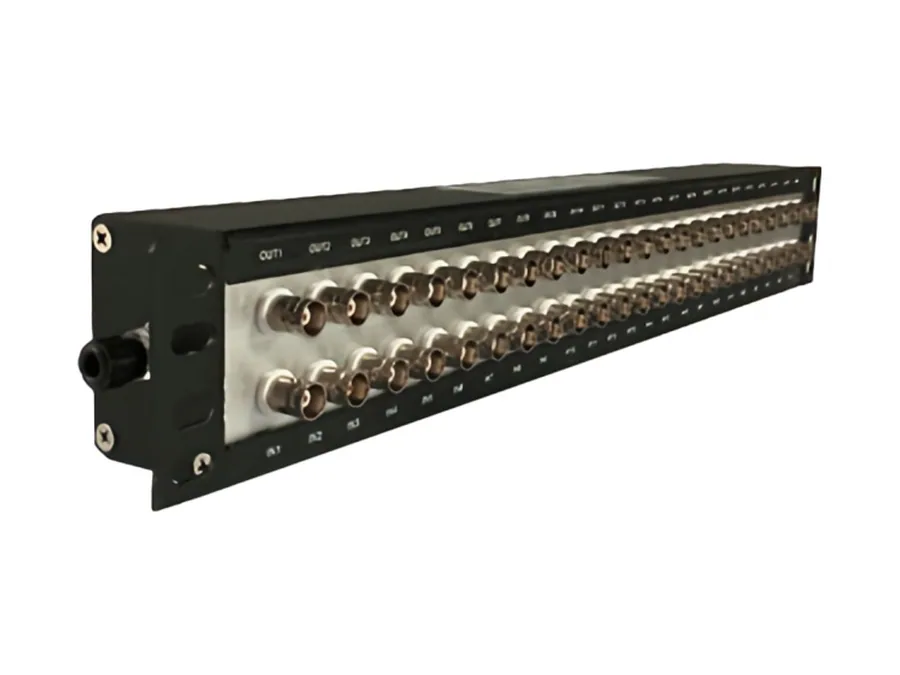

Fire control line lightning arrester HD-XC-XF

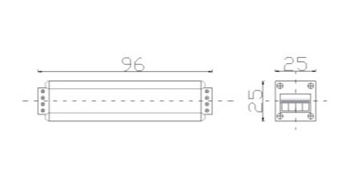

This product is suitable for the protection of Monitor platform, decoding lines, access control data lines, background music, video intercom, intelligent three meter, a wide-used card and fire alarm circuits.It can prevent the damage of line induction overvoltage equipment due to earth potential increase and has low output residual voltage,little insertion loss and double overcurrent protection. Model HD-XC-XF Nominal working voltage Un 12V 24V Maximum continuous working voltage Uc 15V 32V Nominal discharge current In (8/20ms) 5KA 5KA Maximum discharge current Imax(8/20ms) 10KA 10KA Rated load current 1.5A 1.5A Voltage protection level Up (X-X) 110V 150V (X-G) 350V 350V Response time Ta ≤0.1ns Insertion loss ≤0.2dB Insertion resistance ≤1Ω Number of protection lines 2,3 Protection grade IP30 Interface mode Connection terminal External dimension 96*25*25/113*50*38mm Sheathing material Shielding metallic aluminum / Flame retardant thermoplastic material Installation method: Put an arrester in series at the leading end of the interface of lines of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
