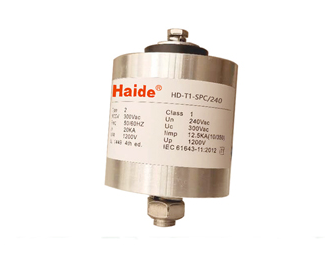

HD-T1-SPC/240

This product is designed for low-voltage output of the main power switchgear to protect the rear-end equipment from direct lightning strikes or fault overvoltage surges introduced from the high-voltage side. This product uses a sealed structure that can be used in a variety of extreme environments to maintain excellent performance, with explosion-proof, waterproof, moisture-proof and anti-corrosion effects. It can be applied to various fields such as wind energy, solar energy, petrochemical, mining, and electric power. This product adopts high-energy type semiconductor device, low residual voltage, impact resistance, installed in sealed metal casing, self-heating function and over-current over-current tripping function, which can function as explosion-proof and fireproof. Model HD-T1-SPC/240 HD-T1-SPC/400 HD-T1-SPC/480 HD-T1-SPC/690 Nominal working voltage Un 240VAC 400VAC 480VAC 690VAC Maximum working voltage Uc 300VAC 480VAC 600VAC 860VAC Rated discharging current In(8/20 us) 20KA 20KA 20KA 20KA Maximum discharging current Imax（8/20μs） 140KA 140KA 140KA 140KA Impact current Iimp(10/350 μs ) 12.5KA 12.5KA 12.5KA 12.5KA Voltage protection level Up(In10KA) 1.2KV 1.8KV 2.3KV 3.3KV Drain currrent Ir <5 uA <5 uA <5 uA <5 uA Installation 3+0 3+1 3+0 3+1 3+0 3+1 3+0 3+1 Response time Ta ≤25 ns ≤25 ns ≤25 ns ≤25 ns Protection grade IP68 IP68 IP68 IP68 External dimension φ63.5*95mm φ63.5*95mm φ63.5*95mm φ63.5*100mm
