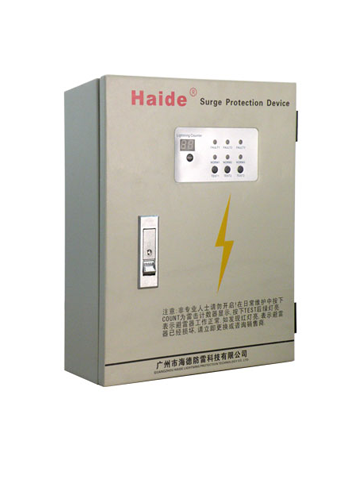

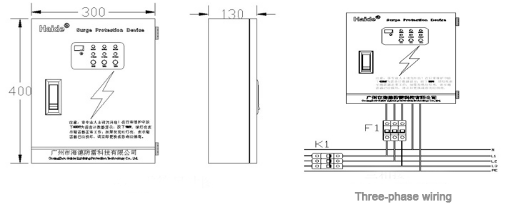

Cabinet type power supply lightning arrester（big)

Electric surge protector of low-voltage distribution system, which is in the form of a box, is designed according to IEC standard., It has invalidation detection indication, lightning stroke numbering display,installed overflowing and overheating protection with great lightning current discharge capability. It's applicable to the protection of buildings' general supply system against lightning, as well as Grade 1 and 2 lightning protection of the general supply in building, machine room, plant and enterprise to make sure the safe operation of electronic equipment and other electrical equipment. This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later. Model HD-D380B-XL160 HD-D380B-XL100 HD-D380B-XL80 HD-D380B-XL60 Nominal working voltage Un 380V 380V 380V 380V Maximum continuous working voltage Uc 385V 385V 385V 385V Nominal discharge current In （8/20μs） 80KA 50KA 40KA 30KA Maximum discharging current Imax（8/20μs） 160KA 100KA 80KA 60KA Voltage protection level Up 3.5KV 2.5KV 2.3KV 2KV Prepositive overflowing protection 125A 125A 125A 63A Response time Ta ≤25ns Operating temperature range Tup -40℃to+70℃ Working condition indication Green light means work normally,red light means fault indicaiton. Section of minimum installed conductor 6mm2 multi-folded wire Protection grade IP20 External dimension 300*400*130mm Sheathing material Metal spraying Mode of connection parallel connection Protection mode 4+0/3+1/1+1/2+0 Installation method： Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings. Plug the power phase line (L) and null line (N）into corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection well (recommended earth resistance ≤4Ω). Suggested specification of the lead wire: no less than 6mm2, short and straight.
