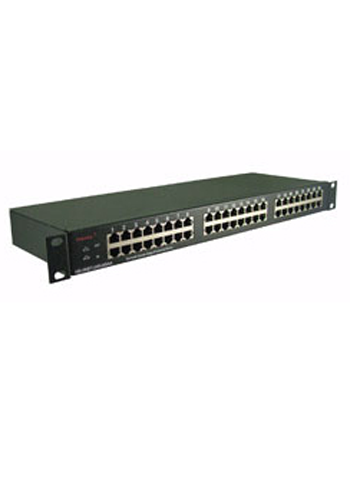

24-interface computer network lightning arrester HD-XNET-24RJ45

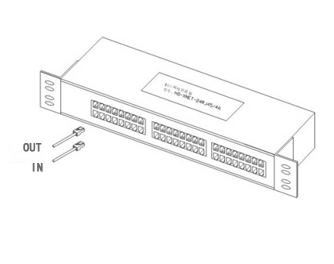

24-interface computer network lightning arrester Design of this product considers fully that the electrode capacitance and distributed capacitance would lessen data signaling with small insertion loss. The product contains 4-wire (1/2, 3/6) and 8-wire (1-8) protection, with quick message transmission rate. Protection port number includes single, 8-port, 12-port, 16-port and 24-port.The semiconductor manostat endows it with precise clamp voltage. Residual pressure output is very low, which can protect the computer network facility effectively. It adopts RJ45 interface, which is applicable to the port protection of cat5 network signal line of server, intelligence terminal, HUB and network switch. Model HD-XNET-24RJ45/4 HD-XNET-24RJ45/8 Power supply Rated voltage Un 5V 12V 220V Maximum continuous working voltage Uc 12V 15V 275V Nominal discharge current In（8/20ms） 2.5KA 300A 5KA Maximum discharging current Imax（8/20ms） 5KA 600A 10KA Voltage protection level Up （X-X）≤70V （X-X）≤85V （X-G）≤400V （X-G）≤85V Series impedance R ≤1Ω Response time Ta ≤1ns ≤25ns Protection grade IP20 Insertion loss ≤0.2dB Interface mode RJ45 Normal power supply socket Mode of connection Connection in series Sheathing material Metal spraying Dimension 482×44×150 (200×44×150)mm Protection mode 1,2,3,6 line 1-8 line full-protection L/N,N/PE,L/PE Installation Method: Put an arrester in series at the leading end of the line interface of the protected equipment. "OUT" is equipment end, and "IN" is incoming feeder end. Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance ≤4Ω).
