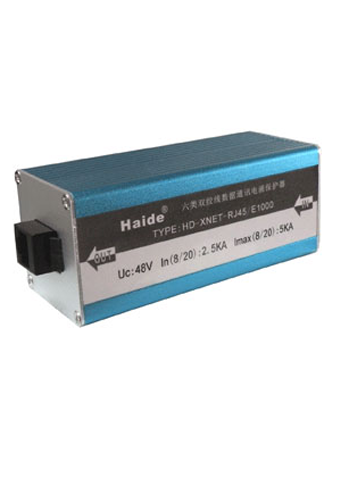

Gigabit computer network lightning arrester HD-XNET-RJ45/E1000

Gigabit computer network lightning arrester This product is designed according to TIA / EIA568B - 2.1 and ISO / IEC11801 standard. The universal RJ45 terminal can connect it to the leading end of the protected equipment conveniently. The high quality and high discharge capability electric surge protector as well as the low capacity and ultra-fast recovery diode matrix structure can provide high energy coarse protection and low energy fine protection to data line, having favorable frequency transmission property as well as higher through flow and fast response speed, which can be used in the integrated wiring of network in office and industry as well as data communication system with similar usage, such as 1000M Ethernet, ATM, ISDN, VOIP network, POE system etc. Model HD-XNET-RJ45/E1000 HD-XNET-RJ45/E1000 Nominal working voltage Un 36V 36V Maximum continuous working voltage Uc 48V 48V Nominal discharge currentIn（8/20ms） 2.5KA 2.5KA Maximum discharging currentImax（8/20ms） 5KA 5KA 1KA/ms Voltage protection level Up （X-X）≤130V （X-X）≤130V （X-G）≤600V （X-G）≤600V Response time Ta ≤1ns ≤1ns Operating temperature range Tup -40℃to +70℃ -40℃to +70℃ Protection grade IP20 IP20 Insertion loss 0.2dB 0.2dB Sheathing material Flame retardant thermoplastic material Metal spraying Mode of connection Connection in series Connection in series Number of guard wire 1-8 wire 1-8 wire Installation Method: Put an arrester in series at the leading end of the line interface of the protected equipment. "OUT" is equipment end, and "IN" is incoming feeder end. Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance ≤4Ω).
